Distributed Cluster Administration Hub
The Distributed Cluster Administration Hub is a premium multi-tenant desktop management system designed to orchestrate containerized cloud environments. Built using JavaFX and integrated with a highly decoupled Docker network cluster, the dashboard enables system administrators to manage and monitor a distributed host cluster composed of load balancers, database storage instances, and multi-tenant SSH-enabled file servers. By leveraging advanced cryptographic standard verification and custom OS subprocess spawning, the solution models enterprise-grade security and role-based file access on low-footprint systems.
Core Features
Containerized Cluster Orchestration
Multi-container Docker environment clustering a desktop client instance, an SSH-based load balancer, a SQL database node, and four separate secure file server hosts.
Interactive Cluster Command Center
Modern, state-of-the-art administrative HUD featuring real-time cluster health tracking, SQL connection diagnostics, and high-performance layout styling designed for enterprise recruiters.
Cryptographic Multi-Tenancy
Secure SQLite user accounts with PBKDF2-based password hashing using dynamic salt loading from an external secure file.
Role-Based File Access Control (RBAC)
Fine-grained permissions allowing standard users to manage their own isolated files prefixed by their username, while granting administrators absolute file reading, writing, and directory scanning authority.

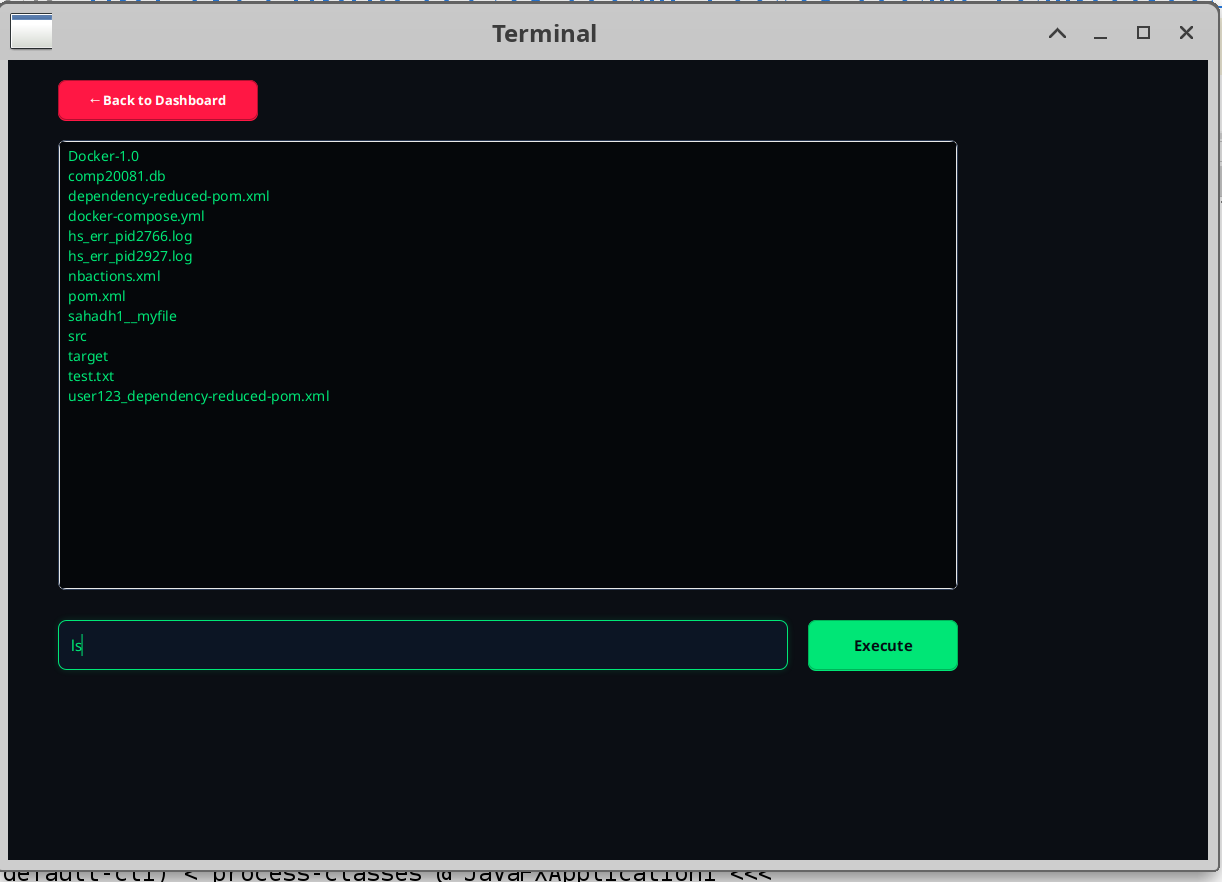

Integrated Administration Terminal
Interactive bash terminal interface using ProcessBuilder to run shell actions and nano editor sessions within gnome-terminal wrappers.
Technical Deep Dive
Docker Network Isolation
Orchestrated a highly decoupled multi-node infrastructure using custom Docker bridge networks (comp20081_network). This isolates the data-tier nodes (MySQL/SQLite) and SSH file server instances (file-servers 1-4) from the central admin console host. Network boundaries prevent direct client access to data assets, forcing all operational traffic through a high-availability load balancer facade.

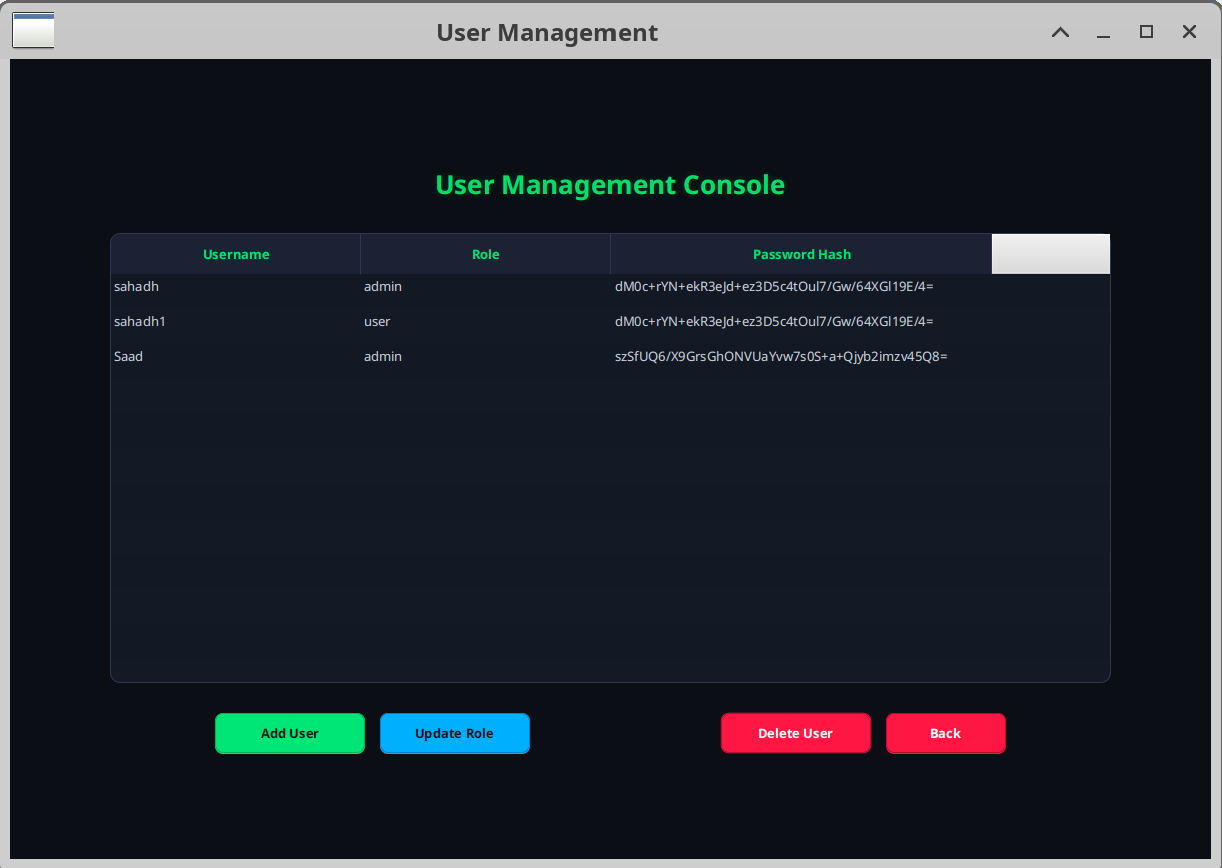

Secure Hashing & Local Persistence
Engineered a SQLite-based authentication layer securing user records with high-performance cryptographic hashing via PBKDF2WithHmacSHA1. To mitigate dictionary and rainbow-table compromises, the system automatically binds passwords to a dynamic 30-character cryptographic salt generated dynamically and persisted within a secure external .salt keyfile at the system's root directory.

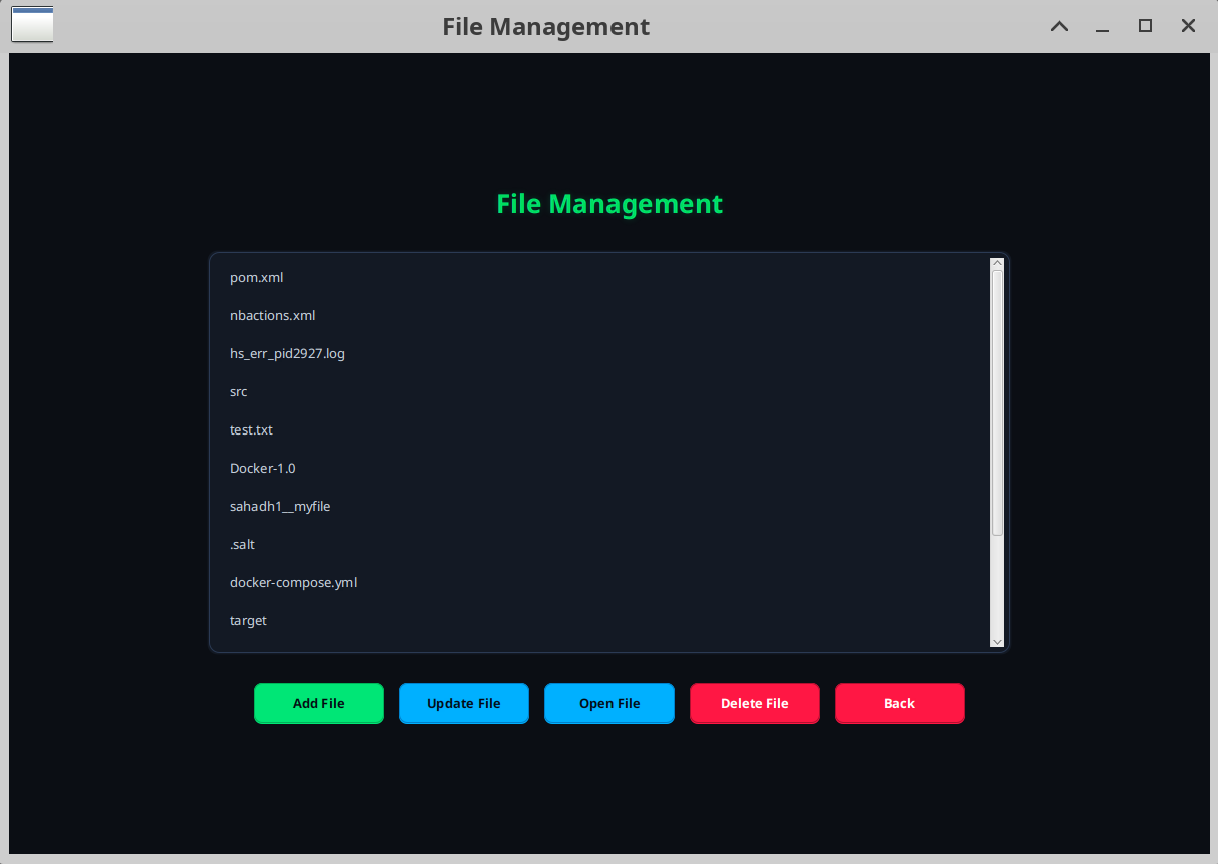

Multi-Tenant Directory Isolation
Enforced strict multi-tenant sandboxing at the application controller level (FileManagementController). To prevent directory traversal and cross-tenant data leaks across the shared cluster, the system validates all file operations against user profiles. Standard accounts are rigidly constrained to reading/writing files prefixed with their own "username_", whereas administrative accounts are granted unrestricted root-level directory traversal and batch system pruning privileges.

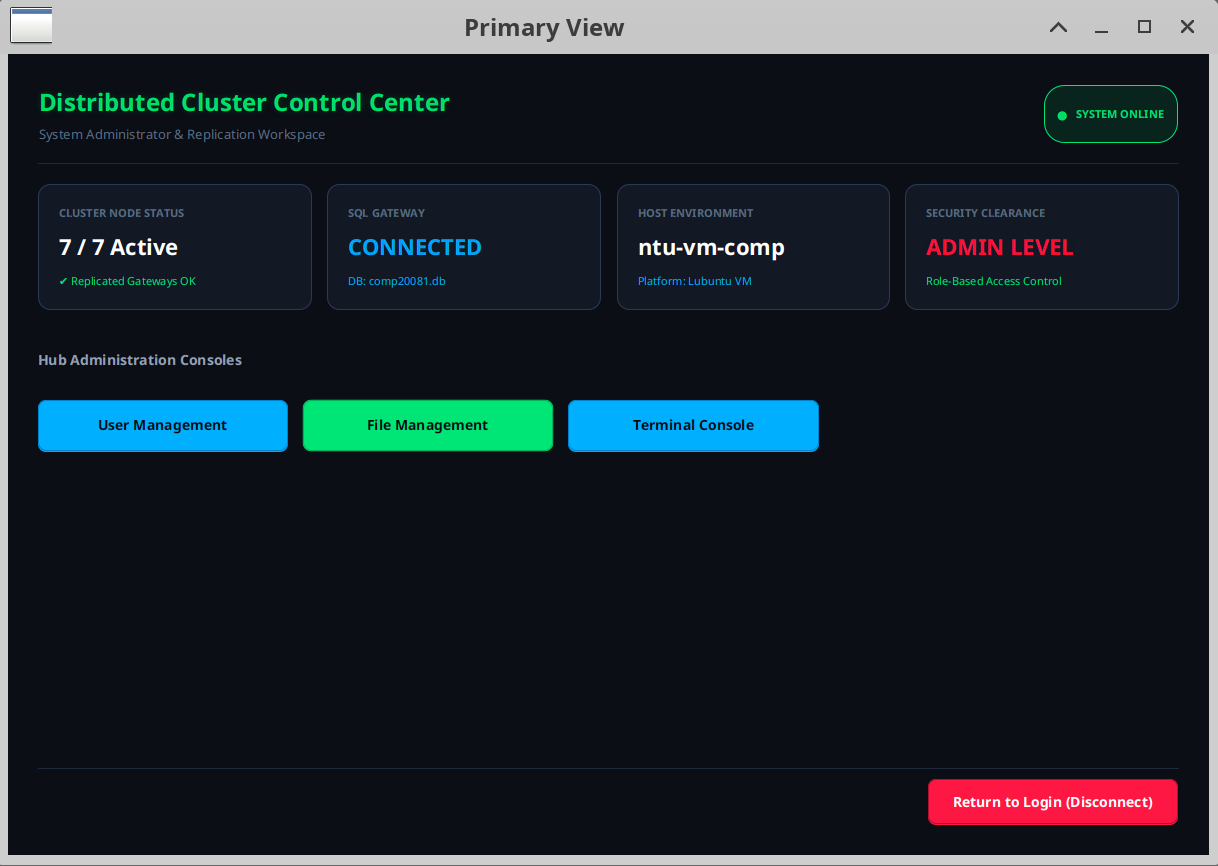

Premium HUD Dashboard & Session Control
Designed and implemented an interactive administrative command HUD with real-time status telemetry (SQL gateway connection, security clearance metrics, and container node replication health). To secure multi-tenant data structures, I refactored the login session sequence to atomically bind user sessions globally upon authentication, preventing cross-tenant privilege escalation and null references during database table queries.
Performance Benchmark
"Architected a secure containerized administration system running a JavaFX dashboard in Lubuntu, managing a cluster of 4 SSH file servers and SQLite storage with PBKDF2 security."
